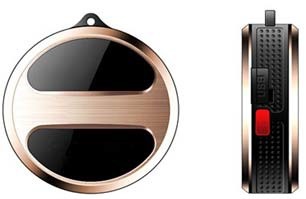

GPS Mini Tracker - AVL900e3

  OBD interface GPS TRACKER GOT08

aaaa



    PRODUCT FEATURES:
  • GPS+GSM+GPRS wireless network
    GSM 850/900/1800/1900 MHz
    Built-in high sensitive MTK GPS chip
    group
    Built-in GPS&GSM antenna
    IP54 Waterproof
    Send location to platform by adjustable
    time
    Inbuilt battery 450mah battery
    50H working time, 160H for standby
    Voice Monitor function
    Two-way communication function
    Phone call avaliable - 2 family numbers
    supported
    SOS emergency alarm
    Geo-fence alarming function


Basic Specifications

Structure

Model

MI-G6

Style

Stylish and elegant

Size

22.5(d)X14.6mm

Button

One button(power button and SOS button)

Dsiplay

0.88mm OLED

GPS antenna

Built-in high sensitivity ceramic antenna

GSM antenna

FPC

Battery

450mAh

SIM card slot

One slot

G-sensor

Supported

I/O port

USB port

Waterproof level

IP54

2.Hardware

Hardware

Solution

MTK MT6260

GPS chip

MTK3326

GPRS

Class12

GPS singals

L1,1575.42MHz C/A code

GPS channels

20 channels

GPS chip receiving sensitivity

Tracking sensitivity:-159dBm,acquisition sensitivity:
-143dBm

GPS Positioning accuracy

5~15m

Accuracy base station location

100-1000M

Minimum standby current

<0.5 mA

Average standby current

<2.5 mA

Average working current

<55mA

Temperature

-20~70℃

Humidity

5% to 95% no condensation

Certification

Can pass national CTA,3C and CE certificate

GPS antenna

Built-in high sensitivity ceramic antenna

GSM antenna

Built-in four frequency PIFA antenna

Bluetooth

Supported

G-sensor

Compatible

Speaker

1208

MIC

Supported

Dimentions:
45mmX14.5mm
Weight: 27g
Box Size:
20x80x55(cm)
Weight: 140g

Standard Packing
PT301 Main Unit
Wall Charger
Charging Cable
Pet Collar optional


Mini Personal GPS Tracker
Green, Blue, Pink Color options
